High Bay with Up-light Built-in Sensor Dimmable LED High Bay

FOB Reference Price:Get Latest Price
US $75-79 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
Led high bay
Emitting Color:
Cold White Warm White White Other
Report Suspicious Activity
Quick Details
LED Highbay
7 Years
LED Chip:
Lumileds 3030
MeanWell HLG
Beam Angle:
70°, 85°, 110°
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton Size: 410*360*345mm
Gross Weight: 6.3KG
Video Description

High Bay with Up-light Built-in Sensor Dimmable LED High Bay



For most of the high bay lights in the market, your end customers can always find similar ones from your competitors. The price competition is terrible! Why not offer them somthing different that they hard to find from your competitors? Our Diamond LED High Bay Light will be your perfect choice!

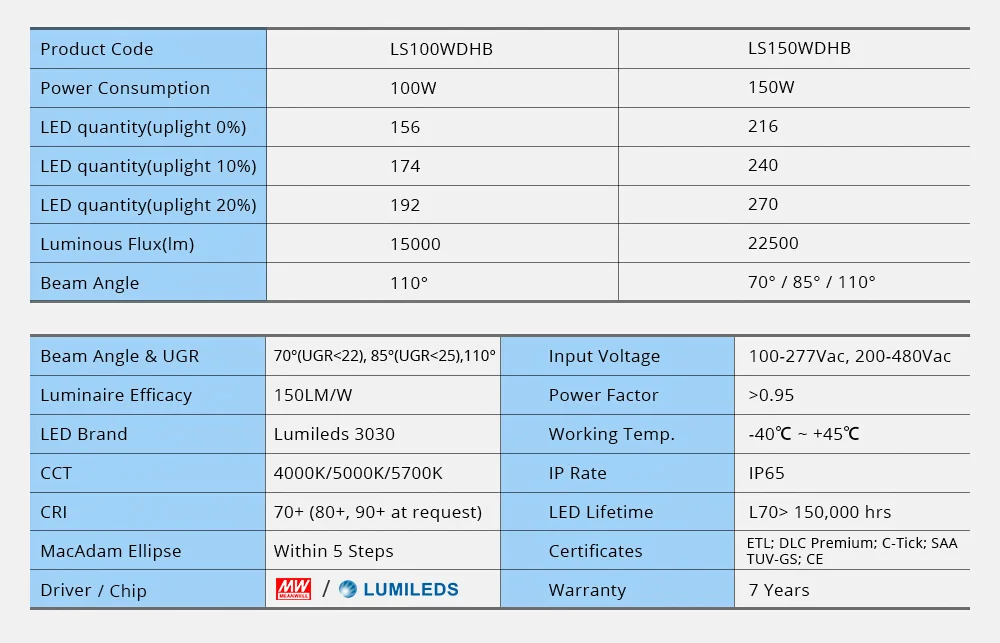

Available Power: 100W, 120W, 150W

Luminaire Efficacy: up to 150 LM/W  (please feel free to contact us for IES files)

Driver: Meanwell HLG series

Input voltage: 100~277Vac ( 200~480Vac for Canada available )

LED Brand: Lumileds

CCT: 4000K, 5000K, 5700K

CRI: Ra70, Ra80 (please note that Ra80 will with lower efficacy than Ra70, will be around 135LM/W)

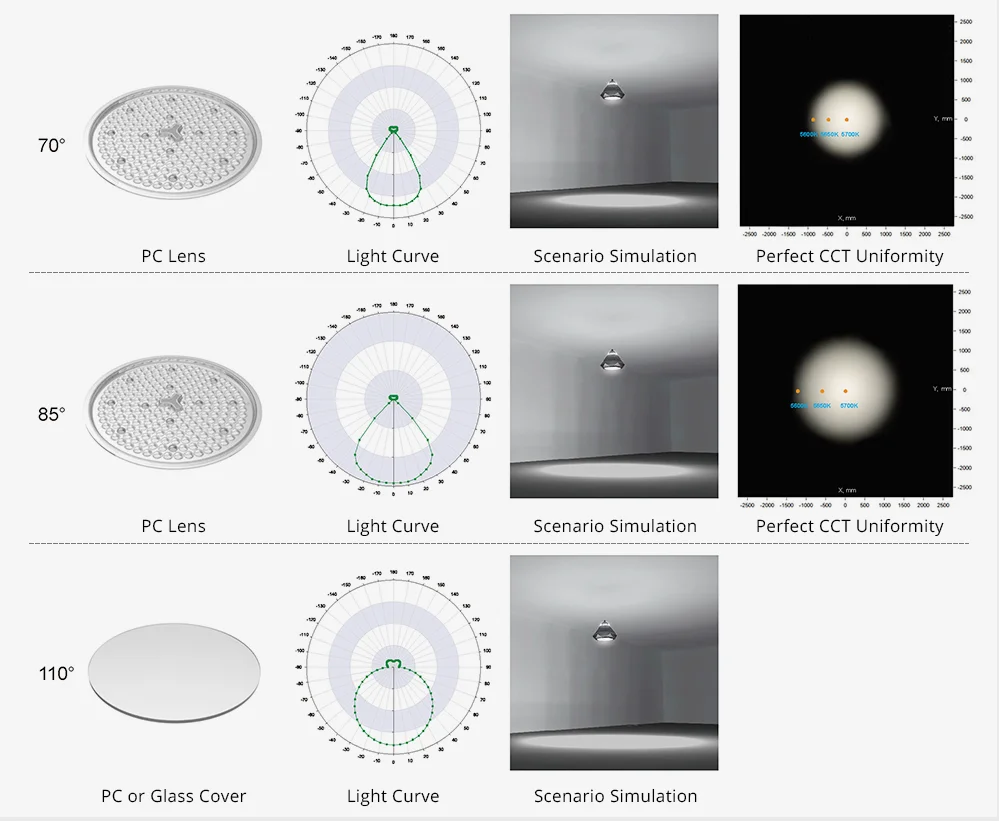

Beam Angle: 70 degree, 85 degree, 110 degree

IP Rate: IP65

Application: warehouse, car showroom, shopping mall, etc.

Warranty: 7 years


Product Features:

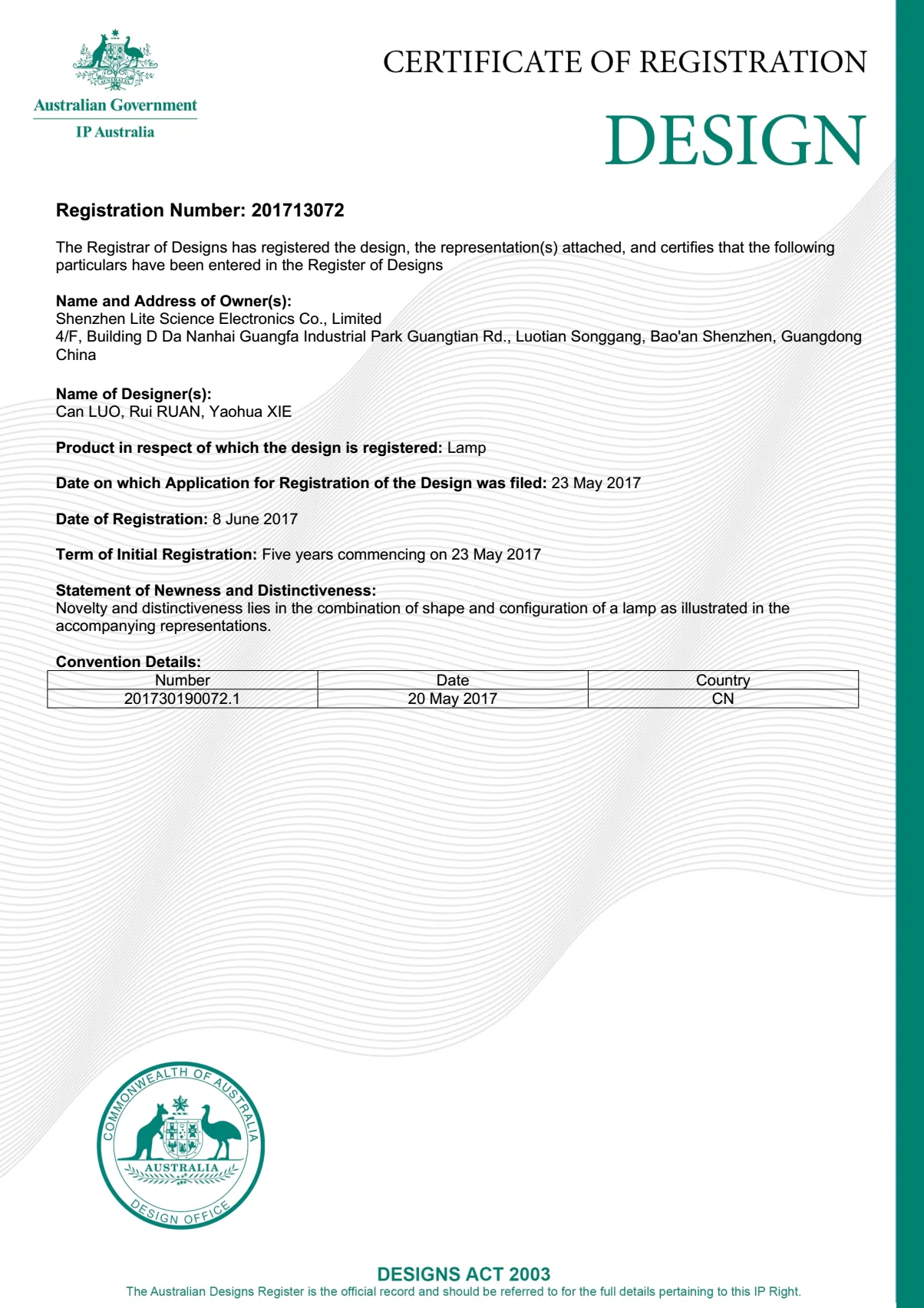

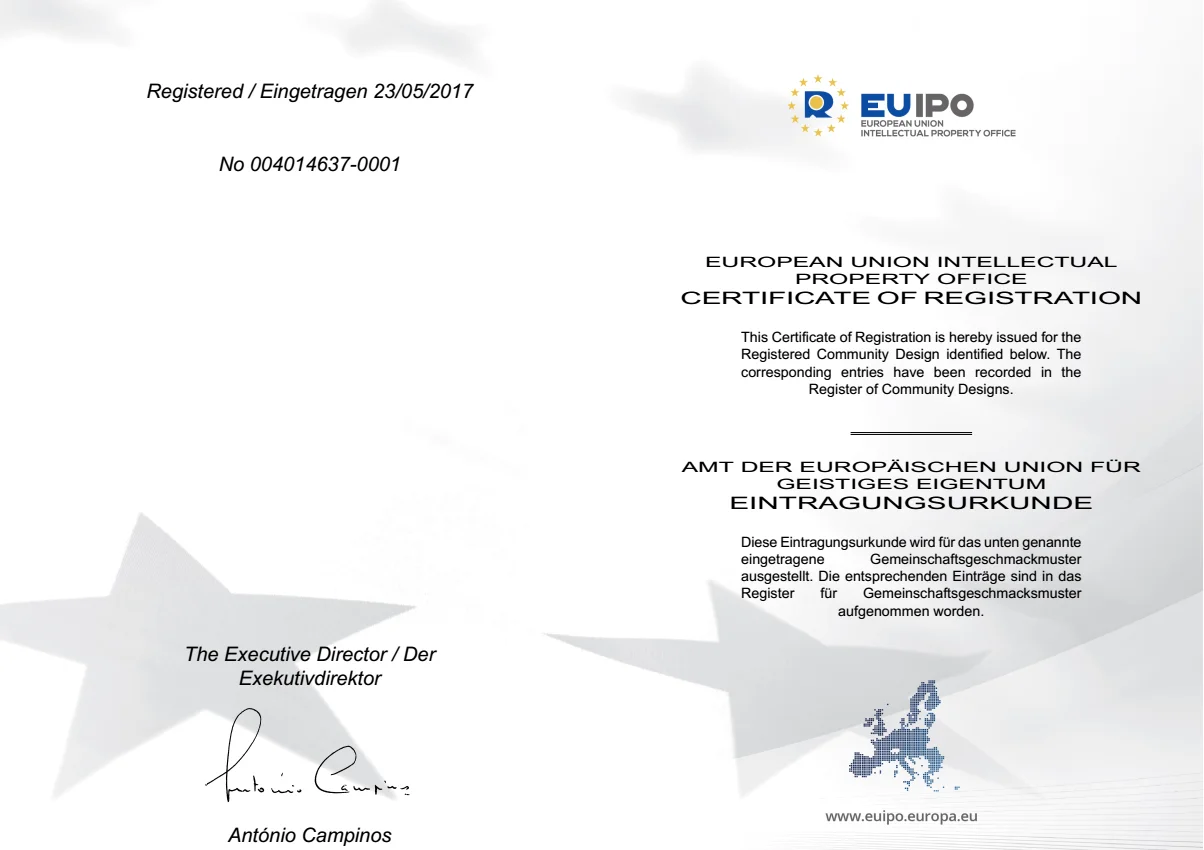

1. Global Patent

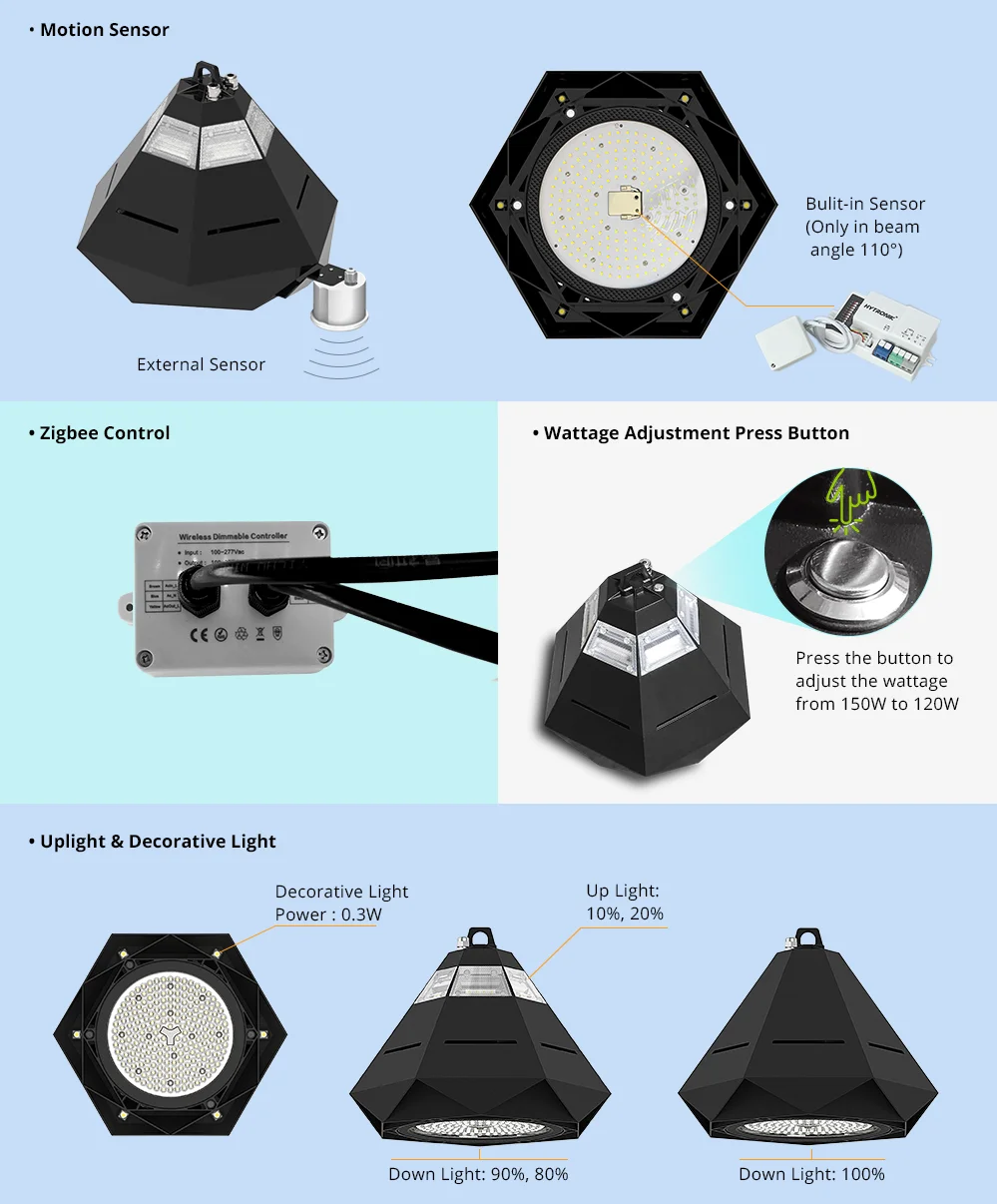

2. Optional up-light 0%, 10%, 20%
    (down-light light is 100%, 90%, 80% )

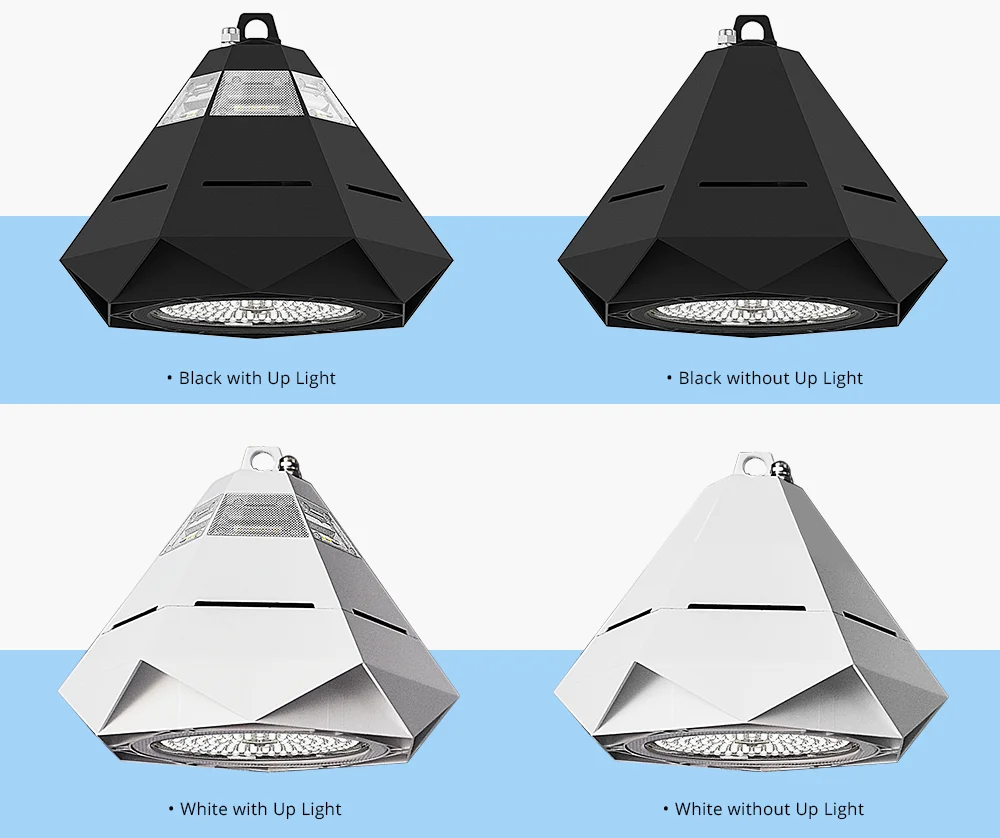

3. Available color: Black or White (other colors can be customized)
4. Optional built-in motion & daylight sensor available
5.  Meanwell HLG series driver & Lumileds LED to ensure good performance
6.  Up to 150LM/W with IES files
7. UGR<22,low glare
8. Power-switching button available (120w and 150w switchable)
9. Certificates that we already got for this product: ETL/cETL, FCCSAA, C-TICK, CE, EMC, LVD, RoHS;
Have Lower UGR ( less glare) than 90% of the LED High Bay Lights in the Market:
Hot Sale

Some of the certificates for our Diamond LED High Bay Light:
company infomation


Packaging & Shipping


Our Services

1. Customized services are available when needed.

2. Best Solutions for customer in Project.
3. Free replacement during Warranty time.
4. Quick action of technical support and maintenance.
