Innovative High Bay Patent Design 150LM/W Low Glare LED High Bay Light

FOB Reference Price:Get Latest Price
US $75-93 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
High Bay Lights
LED Light Source:
Lumileds
Warranty(Years):
7
Input Voltage(V):
AC100-277V
Lamp Power(W):
150
Lamp Luminous Flux(lm):
22500
Lamp Luminous Efficiency(lm/w):
150
CRI (Ra>):
70
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-40 - +40
Working Lifetime(Hour):
54000
Lamp Body Material:
Aluminum
IP Rating:
IP65, IP65
Certification:
C-tick, CE, EMC, ETL, FCC, LVD, RoHS, SAA, UL
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Lite Science
Model Number:
LS150WDHB
Product name:
Innovative High Bay Patent Design 150LM/W Low Glare LED High Bay Light
Efficacy:
150LM/W
Driver:
MeanWell HLG
LED Chip:
Lumileds 3030
Beam Angle:
70°,90°, 110°
P.F.:
0.95
Power:
100W/120W/150W
Input voltage:
AC100~ 277V
Warranty:
7 Years
Packaging & Delivery
Packaging Details
Innovative High Bay Patent Design 150LM/W Low Glare LED High Bay Light
Carton Size: 410*360*345mm
1pcs/Carton
Gross Weight: 6.3KG
Delivery Time
5~10days

Low Glare Diamond High Bay Light

2018 SHENZHEN LED New Product



Available Power: 100W, 120W, 150W

Luminaire Efficacy: up to 150 LM/W  (please feel free to contact us for IES files)

Driver: Meanwell HLG series

LED Brand: Lumileds

CCT: 4000K, 5000K, 5700K

CRI: Ra70, (Ra80 available upon request)

Beam Angle: 70 degree, 85 degree, 110 degree

IP Rate: IP65

Application: warehouse, car showroom, exhibition hall, shopping mall...

Warranty: 7 years



Product Features:

A. Global Patent Design

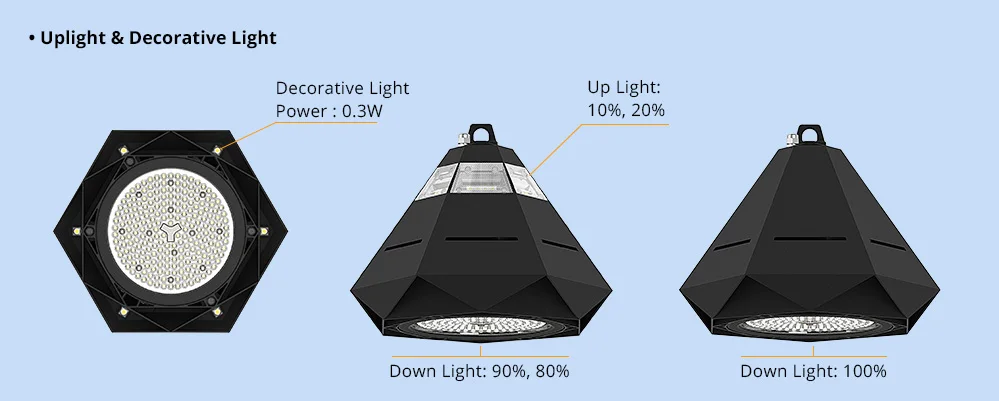

B. Optional up-light 0%, 10%, 20%
    (down-light light is 100%, 90%, 80% )
C. Optional color: Black or White (other colors can be customized)
D. Optional built-in motion & daylight sensor available
E.  Meanwell HLG series driver & Lumileds LED to ensure good performance
F.  Up to 150LM/W with IES files
G. UGR<22,low glare
H. Power-switching function available (can switch between 150w and 120w)
I.  100~277Vac,  200~480Vac for Canada available
J.   7 years warranty
k. SAA, C-TICK, CE, RoHS, ETL, FCC certified

Product details of Diamond LED High Bay:

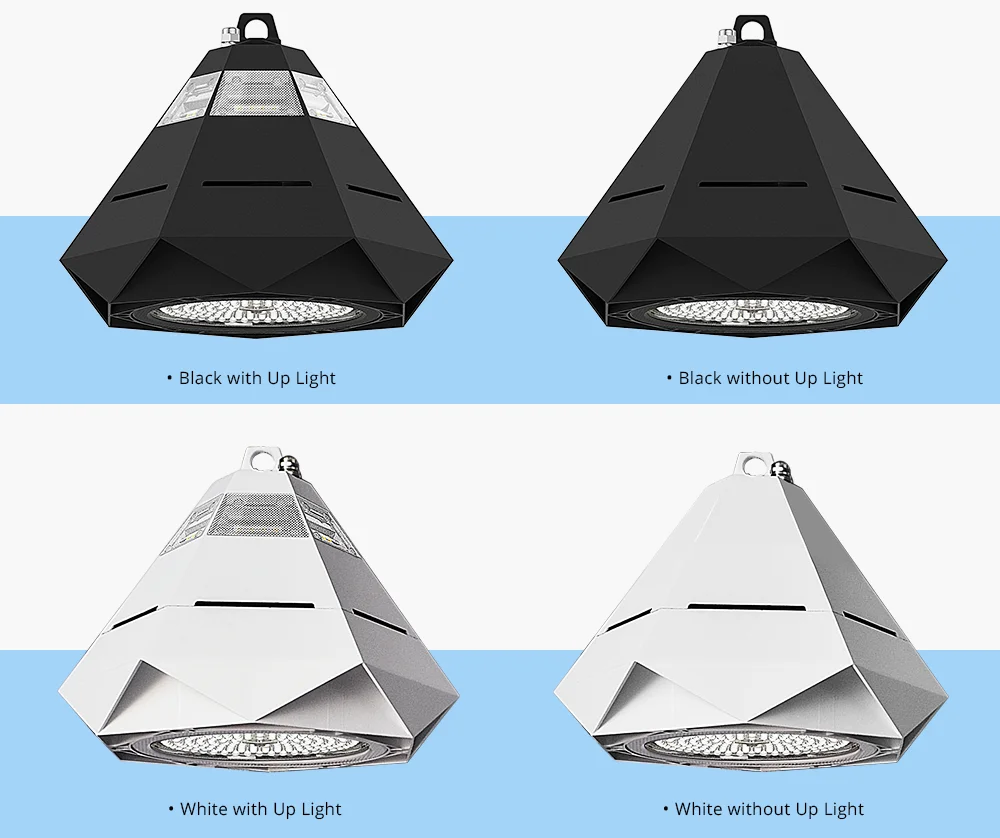

Optional color: Black or White (other colors can be customized)

Optional function:

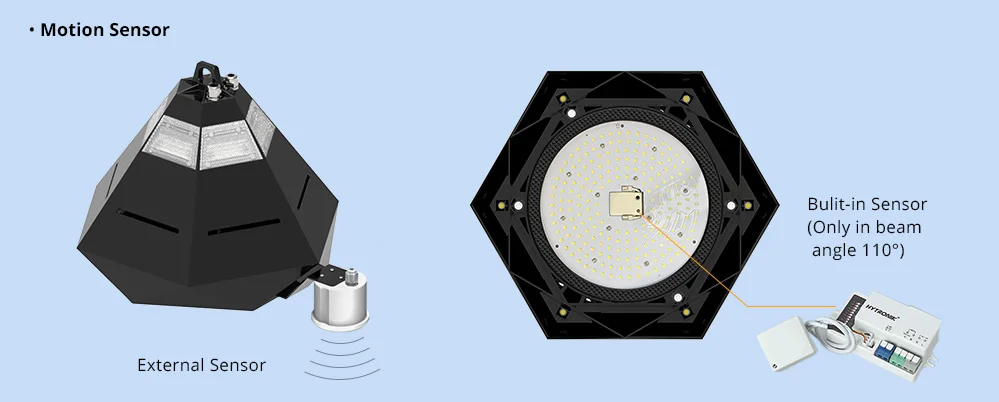

Both our external sensor and built-in sensor can be remote control. We can set the microwave motion sensor to the pattern/mode you required before delivery. Or you can buy a remote-controller to set the sensor mode by yourself. A remote-controller is suitable for all the external sensors. A remote-controller suitable for all the built-in sensors.

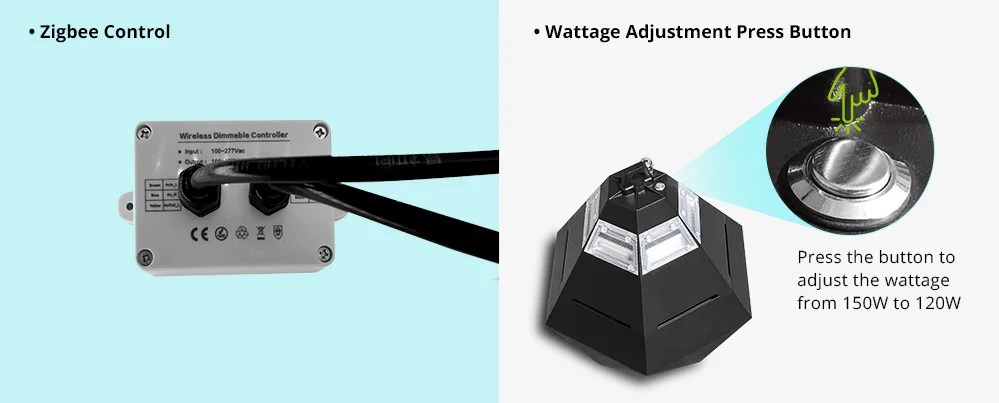

The Wattage Adjustment Press Button is to help our clients reduce inventory pressure. You just need to keep one products in stock, but you can sell it as 150w or 120w.

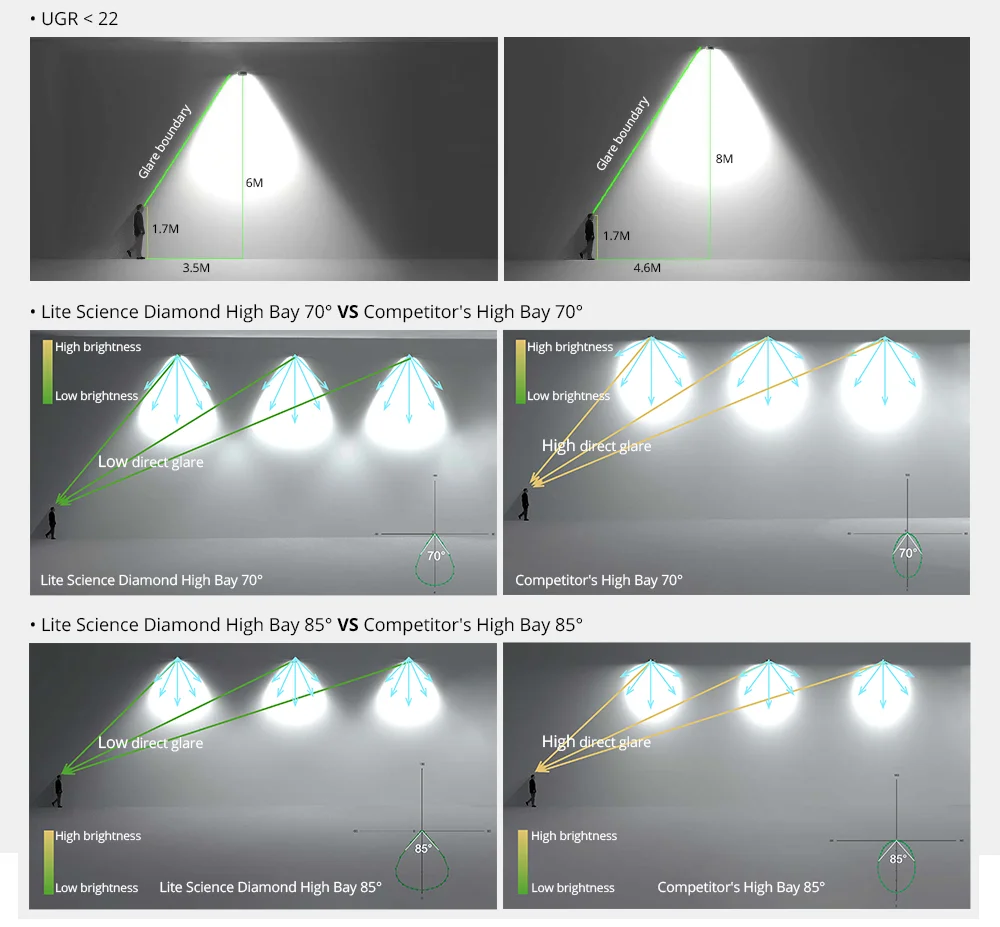

Optical:
High UGR rate has always been a problem to many high wattage LED products like LED high bays.High UGR rate means terrible glare, means your eyes will feel unconfortable. If you want better user experience, you can try our Diamond LED High Bays. Lite Science Diamond LED High Bays have lower UGR rate than 90% of the high bays in the market. 70° UGR<22, 85°UGR<25.




About us:



Want more high quality industrial lighting products?







Shoebox Street Light / Parking Lot light: UL cUL listed, DLC premium



Linear High Bay: SAA, C-TICK, CE, RoHS   Beam angle: 30°,60°, 90°, 30x70°, 60x90°



UFO High Bay: UL listed, DLC premium, SAA, C-TICK, CE, RoHS



Tri-proof Light / Weatherproof Batten Light: SAA, C-TICK, CE, RoHS 130lm/w and 110lm/w available



IP20 LED Batten Light: SAA, C-TICK, CE, RoHS
