linear highbay could be installed with through-wiring connectors

FOB Reference Price:Get Latest Price
US $80-115 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
LS160WLHB
Emitting Color:
Cold White White Warm White Other
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
High Bay Lights
LED Light Source:
Lumileds
Warranty(Years):
7
Input Voltage(V):
AC100-277V
Lamp Luminous Flux(lm):
27000
CRI (Ra>):
80
Working Temperature(℃):
-30 - 50
Working Lifetime(Hour):
65000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
C-tick, CE, EMC, RoHS, SAA
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Lite Science
Power:
80W 120W 160W 200W
Beam angle:
30, 60 ,90, 30x70, 60x90
Product Name:
Led Linear High Bay Light
LED Chip:
SMD 3030 LUMILEDS
Color Temperature(CCT):
Cool White
Lamp Luminous Efficiency(lm/w):
135
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1225*305*170mm
2pcs/ctns
13.4kgs/ctn
Port
Shenzhen



linear highbay could be installed with through-wiring connectors







Prduct CodeLS080WLHBLS0120WLHBLS0160WLHBLS0200WLHB
Size2Moduie 0.6M3Moduie 0.9M4Moduie 1.2M5Moduie  1.5M
Wattage80W120W160W200W
Luminous Flux10000LM15000LM20000LM25000LM
LED Quantity112PCS168PCS224PCS280PCS
Luminaire Efficacy125LM/W
LED ChipLumileds 3030 2D
Beam Angle30°,60°,90°,30°*70°,60°*90°
CCT4000K/5000K/5700K (upon at request:3000K/6500K)
CRI >80
MacAdam EllipseWithin 5 Steps
DriverMEAN WELL
Input Voltage100-277Vac
Prwer Factor>0.95
Working Temp-40℃+45℃
IP RateIP65
Life timeL70B20 50000 Hours
Warranty7 Years or 50000 Hours
CertificatesSAA.C-Tick.CE.RoHS
Connection

 Description of IP65 linear high bay light.

              Option A (Default): one -end power with 0.75m cord                      Option B : one-end power with plug & play



Option C : Wiring  through with plug & play



Installation



          Sensor :  Motion and Daylight

            Microwave motion senso

Optical Parameters

Dimension & Package

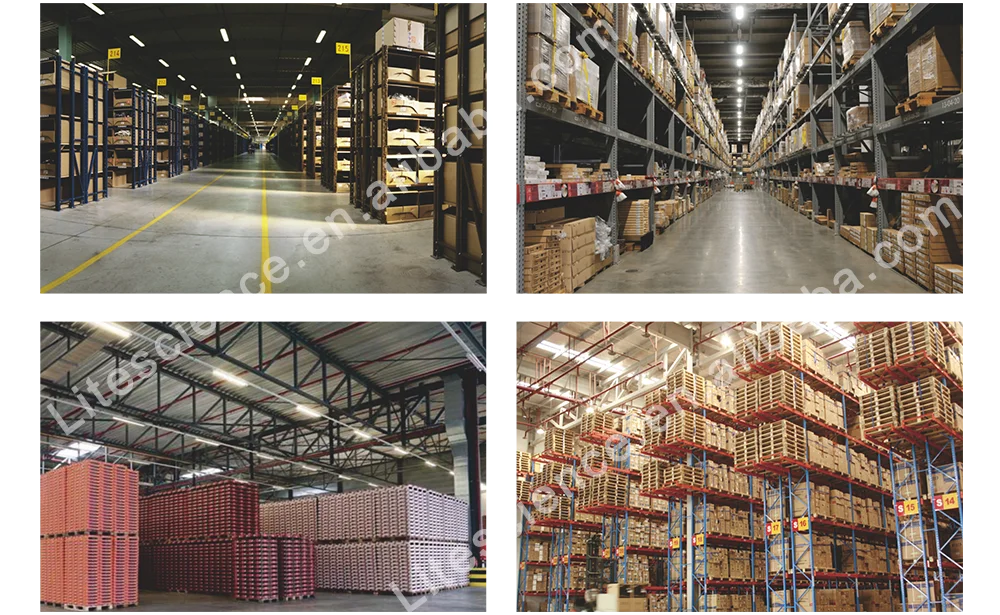

Application
Used for Factory (shed, warehouse), sports center,(gym, swimming pool, changing room), service area (supermarket, restaurant, school, subway, tunnel, kitchen, bathroom, store, pedestrian passage, corridors, elevated, overpasses, garage, airport service area) etc.
