linear led high bay Working Temp -40~+50 degree 400K/5000K/5700K

FOB Reference Price:Get Latest Price
US $80-115 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
High Bay Lights
LED Light Source:
Lumileds
Warranty(Years):
7
Input Voltage(V):
AC100-277V
Lamp Power(W):
160
Lamp Luminous Flux(lm):
27000
Lamp Luminous Efficiency(lm/w):
135
CRI (Ra>):
80
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-25 - 45
Working Lifetime(Hour):
65000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
C-tick, CE, EMC, RoHS, SAA
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Lite Science
Model Number:
LS160WLHB
Product Name:
Led Linear High Bay Light
Power:
80W 120W 160W 200W
LED Chip:
SMD 3030 LUMILEDS
Beam angle:
30, 60 ,90, 30x70, 60x90
SupplyAbility
SupplyAbility:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1225*305*170mm
2pcs/ctns
13.4kgs/ctn
Port
Shenzhen
Lead Time :
2-4 weeks



Product Description

linear led high bay Working Temp -40~+50 degree 400K/5000K/5700K

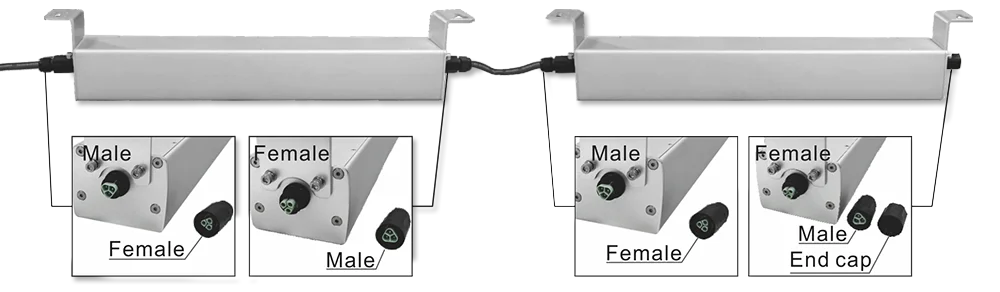

Connection

 Description of IP65 linear high bay light.

              Option A (Default): one -end power with 0.75m cord                      Option B : one-end power with plug & play



Option C : Wiring  through with plug & play

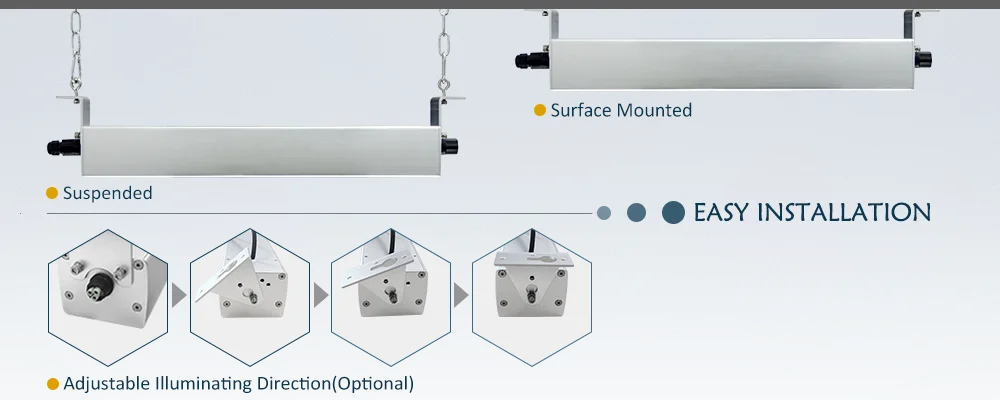

Installation



          Sensor :  Motion and Daylight

            Microwave motion senso

Optical Parameters

Dimension & Package

Application
Used for Factory (shed, warehouse), sports center,(gym, swimming pool, changing room), service area (supermarket, restaurant, school, subway, tunnel, kitchen, bathroom, store, pedestrian passage, corridors, elevated, overpasses, garage, airport service area) etc.
